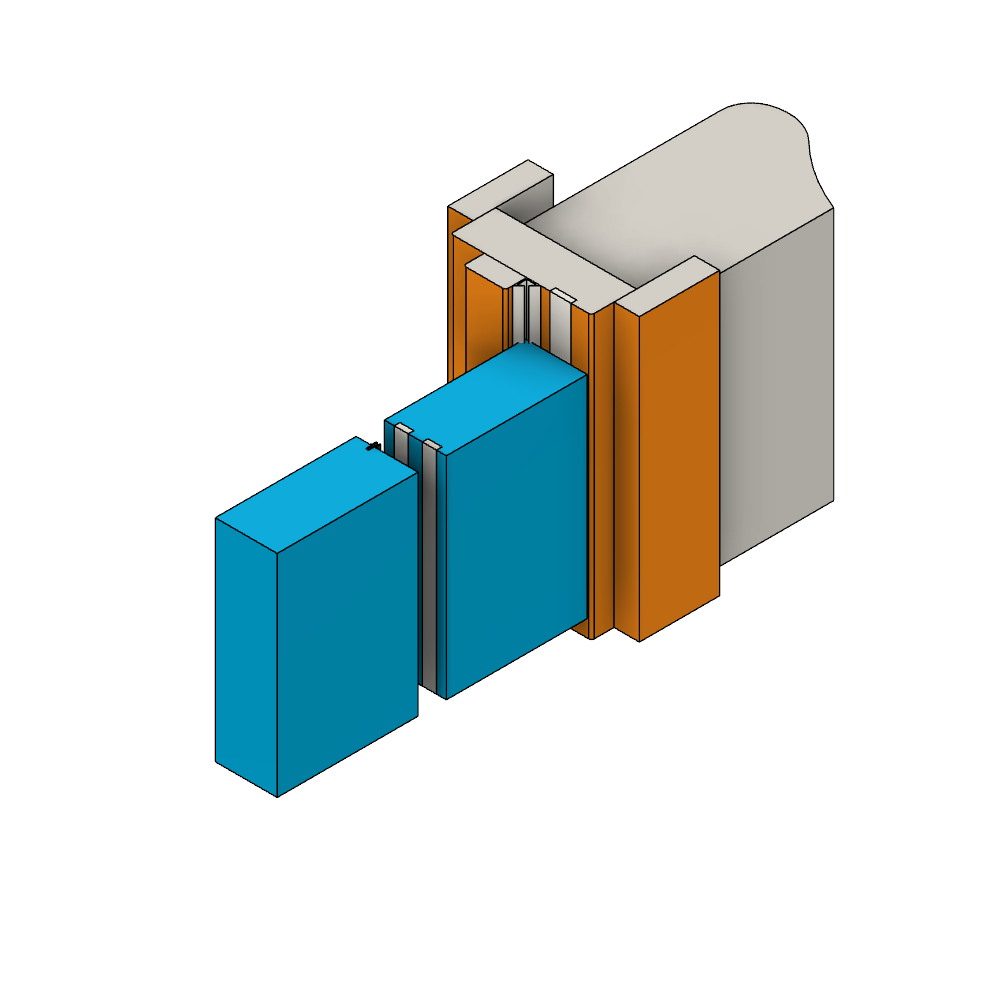

Seal Pack 0700

4 x 15mm Fire Only to Frame Perimeter

LAS1010 Batwing to Frame Perimeter

2nr 4 x 10mm Fire Only to Meeting Stile of Primary Leaf

1nr LAS1011 Fir Tree to Meeting Stile of Secondary Leaf

CF5228 Intumescent & Dimensional Requirements are Based on the
Inclusion of 200mm Flush Bolts Fitted to the Secondary Leaf See
Supplement 509450 For Intumescent Seal Requirements

CF198 Also Requires 1nr Additional Single 4 x 10mm Fire Only
to The Head of Each Leaf - All Seals To Be Lorient Type 617 (CF341)

CF380 Requires Requires 1 nr 4 x 20mm Fire Only to the Frame Head
in Lieu of the 4 x 15mm - All Seals To Be Lorient Type 617 (CF341)

Applicable Door Leaves

Manufacturer	Certificate	Max Height (mm)	Max Width (mm)	Seal Manufacturer
Strebord 44	CF5228	2351 @ 924mm W	1065 @ 2040mm H	Mann McGowan 500P - CF356
Premdor Moulded (Solid Core 44mm)	CF198	2040 @ 926mm W	926 @ 2040mm H	Lorient Type 617 - CF341
Premdor Paint Grade + (Solid Core 44mm)	CF380	2040 @ 926mm W	926 @ 2040mm H	Lorient Type 617 - CF341
Premdor Veneered (Solid Core 44mm)	CF625	2040 @ 926mm W	926 @ 2040mm H
Fire & Smoke (Brush) Seals Are Pyroplex Graphite Rigid Box - CF355 Unless Stated Otherwise
