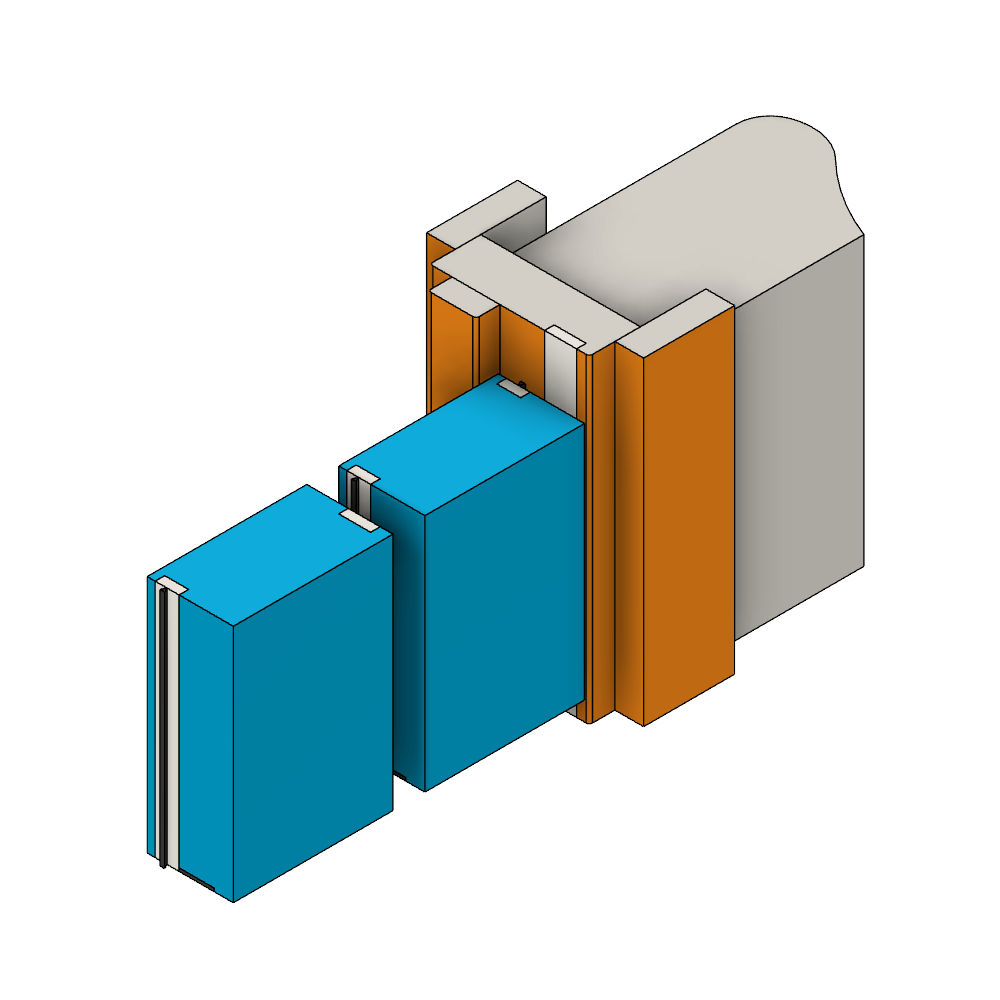

Seal Pack 4100

6 x 15mm Fire With Brush Seal to Door Primary Leaf Head & Jambs - 40mm From Pull Face

6 x 15mm Fire With Brush Seal to Secondary Leaf Head & Hinge Side - 40mm From Pull Face

6 x 25mm Fire Only to Secondary Leaf Latch Side - 8mm From Pull Face

6 x 25mm Fire Only to Frame Perimeter - 8mm From Pull Face

2 x 50mm Intumescent - Centrally in Bottom of Leaf

Applicable Door Leaves

Manufacturer	Door Core	Report	Configuration	Max Height (mm)	Max Width (mm)
Halspan	Halspan 90	Chilt/A05151 Rev J	L/ULSADD	2150 @ 915mm W	915 @ 2150mm H
All Intumescent Seals Are Proprietary to Halspan
